A borehole can provide an excellent independent water source, but the pump is the component that determines whether that water arrives reliably at the property. Choosing a borehole pump for private water supply is not simply a matter of matching pipe size or selecting the highest pressure figure on a product listing. The pump, motor, controls, pressure vessel and pipework must work as one system.
For a home, smallholding or commercial property, getting the specification right means stable pressure at outlets, sensible energy use and less risk of costly call-outs. Getting it wrong can mean repeated pump cycling, poor flow during busy periods, water shortages or a pump that operates outside its intended duty.
Start with the borehole, not the pump
The borehole sets the limits of the system. Before selecting equipment, establish its drilled depth, internal diameter, static water level and tested yield. Static water level is the depth to water when no water is being drawn. The dynamic water level is the level after pumping has continued for a period. The difference between the two is drawdown, and it matters because the pump must remain adequately submerged while operating.
A borehole may be deep without producing a high volume of water. Equally, a shallower source may have a strong, dependable yield. A pump that demands more water than the borehole can replenish will lower the water level too far, causing dry-running protection to intervene or, worse, damaging the pump and motor.
A yield test should therefore inform the design. It should identify the sustainable flow rate, the water level during pumping and the recovery behaviour once pumping stops. If records are unavailable, a borehole contractor or water specialist can help assess the source before a replacement or new installation is specified.
Water quality also deserves attention. Sand, silt, iron, manganese, hardness and salinity can influence the choice of materials, filtration and treatment. A submersible borehole pump is built for clean water, not for persistent abrasive solids. If the source produces sediment, address the source conditions and filtration arrangement rather than expecting the pump to tolerate it indefinitely.
Calculate the duty: flow and total head
Every pump selection begins with a duty point: the required flow rate at the required total head. These two values are more useful than a headline motor size because they show where the pump must operate on its performance curve.
For a typical private dwelling, the target flow depends on the number of bathrooms, appliances, irrigation demand and expected simultaneous use. A property where one or two outlets are generally used at once needs a very different duty from a large house with several bathrooms, outbuildings and regular garden watering. Designing for every possible outlet running together can lead to unnecessary oversizing, while designing only for one tap can leave the property short of water at peak times.
Total head combines several pressures and losses. It includes the lift from the pumping water level to the property, the pressure needed at the outlets, and friction losses through rising main, fittings, filters, valves and treatment equipment. As a useful guide, 1 bar of pressure is roughly equivalent to 10 metres of head. A system needing 3 bar at the house already requires about 30 metres of head before allowing for the lift from the borehole and pipe losses.
For example, if the dynamic water level is 35 metres below ground, the house requires 3 bar pressure, and pipework losses amount to 10 metres, the pump duty is approximately 75 metres of head at the required flow. This is a starting point, not a finished specification. Changes in pipe diameter, cable length, treatment equipment and control arrangement all need checking.
Why a larger pump is not always better
Oversized pumps can create high velocity in pipework, excessive pressure, noise and unnecessary electrical consumption. They may also cycle rapidly if paired with an undersized pressure vessel. More critically, a high-flow pump can outpace the borehole yield.
An undersized pump has the opposite problem: pressure falls when water demand rises, and the system may never achieve the intended performance. The best selection is the pump whose curve meets the calculated duty efficiently, with a sensible margin rather than an extreme one.
Selecting a borehole pump for private water supply

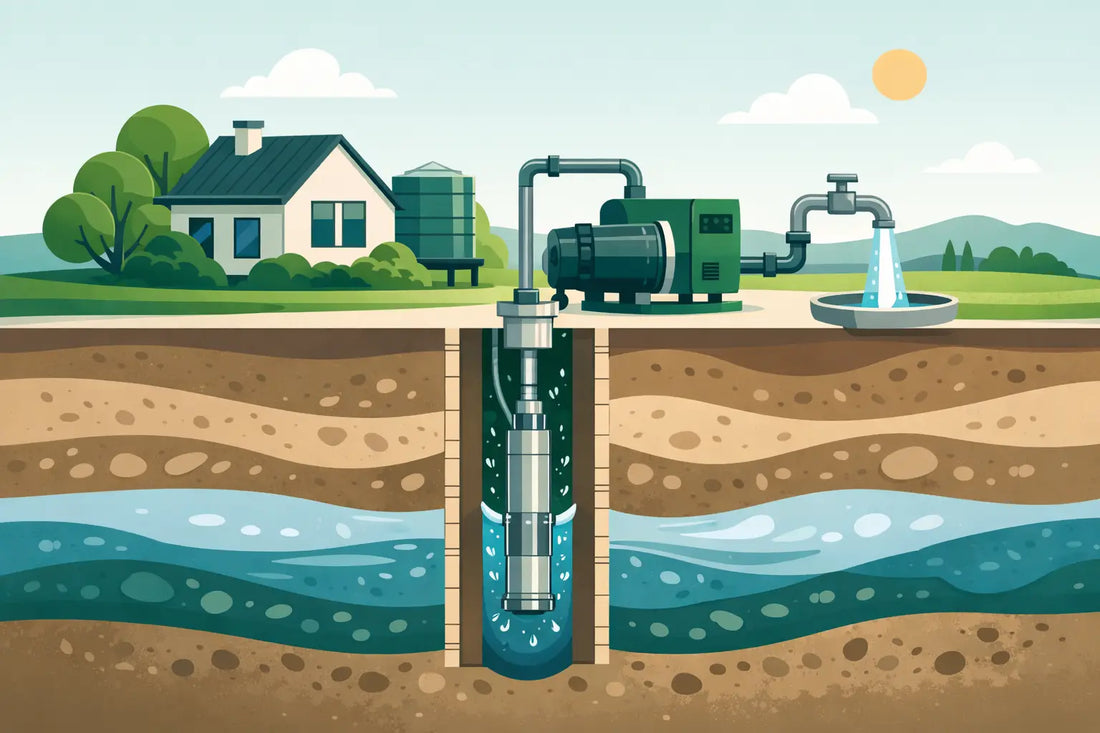

Most private boreholes use a multistage submersible pump installed below the working water level. These pumps are compact enough for standard boreholes and use multiple impellers to generate the head required to lift water to the surface and supply the building.
The borehole diameter determines the maximum pump diameter, but physical fit is only one consideration. The pump must be positioned above the bottom of the borehole to reduce sediment intake and below the expected dynamic water level to maintain cooling and reliable operation. Where water enters the borehole above the pump, a flow sleeve may be needed to ensure adequate cooling past the motor.
Pump construction should suit the water and the duty. Stainless-steel components are often preferred for long-term durability, particularly where water chemistry is challenging. The motor supply must also be confirmed. Smaller domestic systems may use single-phase power, while higher-duty applications can require three-phase equipment and a suitable control panel.
Trusted borehole pump ranges are available with different numbers of stages, motor outputs and performance curves. The correct model cannot be identified from depth alone. A 60-metre borehole may need a modest pump if the water level is high and demand is low, while a 30-metre borehole can need a higher-head model where the property is elevated or pressure requirements are greater.
Controls, pressure vessels and protection
A borehole pump needs more than a start and stop switch. The control method has a direct effect on pressure stability, pump life and running costs.
A conventional pressure-switch system uses a pressure vessel to store a small usable volume of water. When pressure falls to the cut-in setting, the pump starts. When the vessel is recharged to the cut-out setting, it stops. This arrangement is straightforward and effective when the vessel is correctly sized and its air pre-charge is maintained.
Electronic pump controllers can provide automatic start and stop protection, though their suitability depends on the pump type and system demand. Variable-speed control is another option, particularly where demand varies widely or constant pressure is a priority. It can reduce pressure fluctuation and limit energy use at lower demand, but it brings additional equipment cost and requires a properly compatible pump, motor and installation.
Protection is not an optional extra on a private supply. A well-designed system should consider dry-running protection, overload protection, voltage monitoring where appropriate, and protection against frequent starts. Dry-running may be detected by current sensing, pressure behaviour, level sensing or a dedicated probe, depending on the arrangement.
A non-return valve is normally fitted to prevent water draining back down the rising main when the pump stops. Isolation valves, pressure gauges and accessible unions also make servicing easier. If the property has a storage tank, float controls and suitable overflow arrangements become part of the wider system design.
Consider a break tank where demand is variable
Some boreholes are best operated as a two-stage system. The borehole pump fills an intermediate break tank at a controlled rate, and a separate booster set supplies the property from that stored water. This can be particularly useful where borehole yield is limited, household demand is high, or water treatment needs a consistent feed.
The trade-off is more equipment, space and maintenance. However, the tank provides useful resilience: it separates short periods of high demand from the borehole's sustainable yield and gives the source time to recover. For larger homes, hospitality properties, agricultural use or buildings with variable occupancy, this can be a more dependable arrangement than asking one borehole pump to respond directly to every change in demand.
Installation details that protect the system
A reliable installation uses a correctly rated rising main, waterproof cable jointing, appropriately sized electrical cable and a secure support method. The pump must never hang from its electrical cable. Use suitable safety rope or support cable where specified, while ensuring the rising main and fittings carry the working load as designed.
Electrical work should be completed by a competent installer. Long cable runs can cause voltage drop, particularly on higher-power pumps, and a motor that receives inadequate voltage can overheat or fail prematurely. The control equipment should be installed in a dry, accessible location, with settings recorded for future servicing.
At the surface, protect pipework from freezing and physical damage. Any filtration, treatment plant, pressure vessel and controls should remain accessible. A system that is difficult to isolate or inspect is more expensive to maintain when a fault eventually occurs.
Plan for servicing before there is a problem
Borehole pumps are designed for long service, but they are not fit-and-forget equipment. Check pressure vessel pre-charge periodically, inspect filters and treatment media to the supplier's schedule, and monitor for changes in pressure, flow, noise or run time. A pump that runs longer than usual to reach cut-out pressure may indicate a blocked filter, falling water level, leak, worn pump or control fault.
Keep a record of pump model, installation depth, control settings, borehole test results and water-treatment information. These details turn a future replacement from a guess into a properly informed selection.
For properties in Jersey or Guernsey, Channel Island Pumps can help translate borehole information and site demand into a practical equipment specification. The useful starting point is not a pump model number, but accurate information about the source, the property and the performance you expect from the system.
