A break tank for booster pump system is not simply extra water storage. It creates a controlled separation between the incoming mains supply and the pumps serving a building. Where a property needs more flow or pressure than the mains can reliably provide, that separation protects both the supply network and the pumping equipment.
For homeowners, this may mean dependable water pressure at busy times. For hotels, offices, flats and commercial premises, it can mean avoiding disruption when several outlets operate at once. The right arrangement depends on demand, available incoming flow, storage requirement and the local water authority's requirements. Getting those fundamentals right matters far more than selecting the largest tank or the most powerful pump.
What a break tank does in a booster system

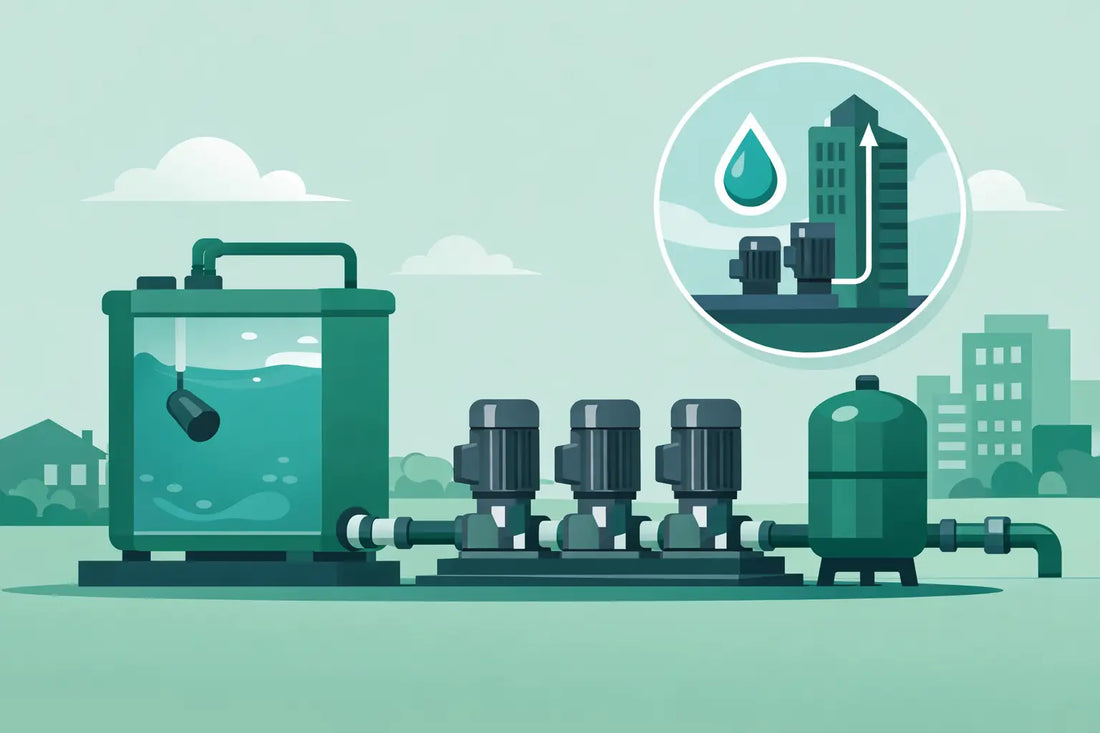

A break tank receives water from the mains through a controlled inlet, normally governed by a float valve or level-control arrangement. The booster pump set then draws water from the tank and supplies the building's cold-water distribution system.
This arrangement prevents a pump from drawing directly from the mains. Direct connection can create a risk of backflow or inadequate pressure in the public supply, particularly when demand is high. A correctly designed break tank provides an air gap between the incoming water and the stored water, helping to protect potable water quality.
The tank also gives the booster pumps a stable suction supply. Pumps perform best when they have adequate water available at their inlet. A fluctuating mains supply, restrictive incoming pipework or a sudden increase in building demand can otherwise lead to poor performance, noise, low-pressure alarms or pump damage.
In practical terms, the tank absorbs the difference between the rate at which water enters the building and the rate at which occupants use it. The booster set can then deliver the required flow at a controlled pressure, within the limits of its design.
When is a break tank for a booster pump system required?
A break tank is commonly specified where direct boosting from the mains is not permitted, where the available supply is insufficient for peak demand, or where the installation requires a defined category of backflow protection. The exact arrangement must be agreed with the relevant water supplier and designed to current water regulations.
It is often the sensible option where a property experiences a reasonable static pressure at quiet times but poor performance when multiple outlets are open. Static pressure alone does not tell the full story. A pressure gauge may look acceptable, yet the available flow can collapse when demand rises. This is particularly relevant in larger homes, multi-occupancy properties, hospitality sites and buildings with several washrooms.
A break tank can also be required when a booster set serves process equipment, commercial kitchens, irrigation, or other applications where the risk classification and water-use pattern need more careful consideration. In these cases, the required air gap, tank material, cover, warning pipework and controls should be selected as part of the system rather than added afterwards.
Not every low-pressure issue calls for a stored-water booster arrangement. A blockage, undersized pipe, failing pressure-reducing valve or poorly configured existing controls may be the actual cause. Before specifying a tank and pump set, establish the incoming mains flow and pressure, the building's peak demand and the condition of the existing pipework.
Selecting the right tank size
Tank capacity is a balance. Too little usable volume can leave the pumps short of water during peak use. An unnecessarily large tank increases cost, takes up valuable plant-room space and allows water to remain stored for longer than necessary.
The calculation starts with the incoming mains flow rate and the expected peak demand. If a building may demand 60 litres per minute while the mains can replenish only 20 litres per minute, the tank must cover the 40-litre-per-minute shortfall for the anticipated duration of that peak. The required volume is then adjusted for the operating range between high and low levels, reserve capacity and the pump controls' low-level protection.
For a domestic property, peak periods may be short and centred on morning or evening use. A commercial site may have a more concentrated demand profile, such as a shift change, cleaning period or event interval. These patterns affect capacity as much as the number of outlets does.
Allow for usable rather than nominal tank volume. The pump inlet must remain safely submerged at the low operating level, while the tank needs freeboard above the normal water level. Space is also needed for the inlet arrangement, overflow, access cover and maintenance clearance. A nominally generous tank can provide less working storage than expected once those details are accounted for.
Water quality and turnover
Stored potable water should not be overlooked after installation. A tank needs a close-fitting cover, screened ventilation where applicable, appropriate overflow provision and access for inspection and cleaning. The system should be designed to encourage sensible water turnover, rather than storing excessive volumes that sit unused.
Material choice matters too. A suitable potable-water tank should be specified for the installation environment. Consider internal plant-room access, floor loading, temperature, UV exposure where relevant and whether the tank will need to pass through narrow doorways before choosing its shape and construction.
Matching the booster pumps to the tank
The tank does not determine pump duty on its own. A booster set must be selected for the required flow and pressure at the building's point of use, allowing for vertical lift, friction losses in pipework and fittings, and any treatment equipment or valves in the system.
A common mistake is selecting a pump solely by its maximum pressure or maximum flow figure. Those figures occur at different points on a pump curve. What matters is the duty point: the flow required at the pressure the building genuinely needs. A correctly selected variable-speed booster set can adjust output as demand changes, improving comfort and reducing unnecessary energy use during low-demand periods.
For higher-demand or business-critical applications, multiple pumps can offer useful resilience. A duty/standby arrangement provides a reserve pump if the lead unit is unavailable. A duty/assist arrangement brings another pump in when demand exceeds the capacity of one unit. The best choice depends on the consequences of downtime, the demand profile and the budget available for redundancy.
The tank outlet and suction pipework must be sized to avoid starving the pumps. Restrictive pipework, unsuitable valves or poorly positioned connections can introduce losses that undermine an otherwise well-specified booster set. Adequate low-level cut-out protection is equally essential. If the water level falls below the safe operating point, the pumps must stop before dry running causes seal or motor damage.
Installation details that protect reliability
A dependable system is built around the equipment, not just assembled from it. The tank needs a level, structurally suitable base and sufficient access for cleaning, float-valve servicing and eventual replacement. Pipework should be properly supported, with isolation valves positioned for maintenance and flexible connectors used where appropriate to limit transmitted vibration.
The incoming supply should be protected and controlled in accordance with the approved design. The overflow and warning arrangement must be visible or routed so that a fault is noticed promptly, without creating a nuisance or risk elsewhere in the property. Do not treat the overflow as an afterthought: a failed inlet valve can fill a tank continuously.
Controls should provide clear indication of pump status, faults and water level. In larger installations, remote alarm capability may be justified, especially where a loss of water pressure could interrupt trading, sanitation or building operations. Commissioning should confirm pump rotation, pressure settings, cut-in and cut-out behaviour, duty changeover where fitted, and low-water shutdown.
Noise deserves attention in occupied buildings. Pumps and pipework can transmit vibration through floors and walls, particularly when installed close to bedrooms, offices or guest areas. Sensible plant-room positioning, anti-vibration measures and correct pipe support make a noticeable difference.
Start with the water demand, not the catalogue
A break tank and booster system should be specified as one coordinated installation. Measure the incoming supply, identify the peak demand, establish the required outlet pressure and confirm the applicable water-regulation requirements before choosing equipment. For properties in Jersey or Guernsey, local technical support can also help account for site access, existing pipework and the practical realities of the installation.
Channel Island Pumps can assist with selecting suitable tanks, booster pumps, pressure controls and accessories from established pumping brands. A few accurate site details at the start will usually prevent an undersized system, unnecessary storage or a difficult retrofit later. The most reliable result is a system that delivers the water the building needs, while protecting the supply it depends on.
