A long wait for hot water at a shower, basin or kitchen tap is more than a minor frustration. It sends usable water down the drain, delays daily routines and can make a well-equipped property feel poorly designed. So, what is a circulation pump for hot water? It is a small pump that keeps domestic hot water moving around a pipe circuit, so hot water is available much sooner at the outlets that need it.
For homes, hotels, offices and larger premises in Jersey and Guernsey, a correctly designed hot-water circulation system can improve comfort while reducing unnecessary water waste. The right pump matters, but so do the pipe layout, controls, insulation and hot-water system it serves.
What is a circulation pump for hot water?

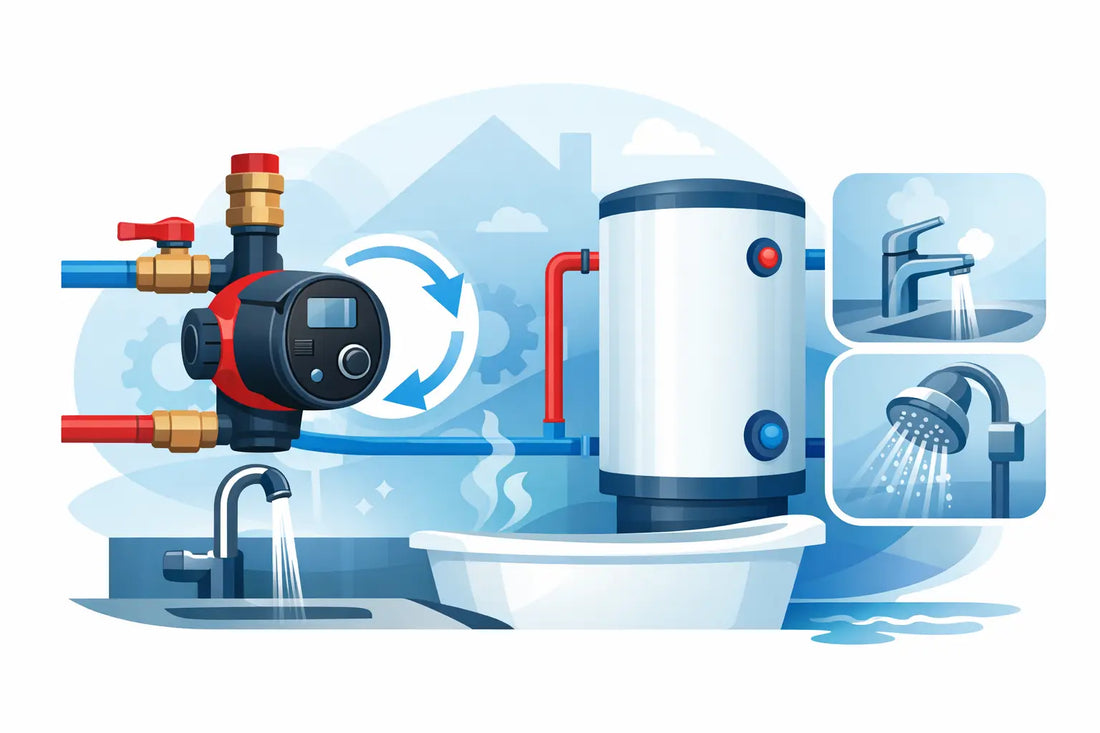

A domestic hot-water circulation pump moves heated water from a cylinder or water heater through the hot-water distribution pipework and back again through a dedicated return pipe. Instead of water cooling while it sits in a long pipe run, it is continually, or periodically, returned to the heat source for reheating.
When someone opens a hot tap, the hot water is already close by. The result is a much shorter wait and less cold water wasted while waiting for the temperature to rise.
This should not be confused with a central-heating circulator. A heating pump moves water around radiators, underfloor heating or other closed heating circuits. A hot-water circulation pump works on the domestic hot-water side, supplying water that will be used at taps, showers and appliances. Although the pumps can look similar, the application, materials, controls and specification may differ.
The basic circuit
A conventional recirculation system has a hot-water flow pipe leaving the cylinder or heater, hot-water outlets along the route, and a return pipe from the furthest part of the system back to the heat source. The circulation pump is normally installed on that return line, where it draws cooler water back for reheating.
Non-return valves, isolation valves and balancing arrangements may also be required. In larger buildings with several branches, each return leg must receive an appropriate share of flow. Without balancing, the shortest or easiest route can take most of the circulation, leaving remote outlets slow to deliver hot water.
Why fit a hot-water circulation pump?
The clearest benefit is convenience. In a property where a bathroom is some distance from the cylinder, or where pipework runs through several floors, it may otherwise take a considerable time for hot water to arrive. A circulation pump reduces this delay.
Water saving is another strong reason to consider one. Every time a user runs a tap until it becomes warm, the cooled water held in the pipework is discarded. In a busy household, guest accommodation or commercial washroom setting, this can add up. On the islands, where water use and operating costs deserve proper attention, reducing avoidable wastage is a practical gain.
The benefit depends on how the system is used. A compact flat with a cylinder close to the bathroom may see little improvement. A larger home, a multi-bathroom property, staff changing facilities or a hospitality venue with long distribution routes is more likely to justify the additional equipment and installation work.
Continuous circulation is rarely the best answer
A pump can run continuously, but that is not automatically the most efficient arrangement. Constant circulation creates standing heat losses from the pipes, even when nobody needs hot water. It also uses electricity and may increase the workload on the water heater or cylinder.
Well-insulated pipework is therefore essential. Insulation limits heat loss, improves response at the outlets and reduces energy consumption. It should be treated as part of the system, not an optional extra.
Most domestic and many commercial installations benefit from controlled operation. A timer can run the pump around predictable peak periods, such as before work, school or evening bathing. A temperature-controlled pump can operate when the return temperature falls below a set level. More advanced systems use demand controls, activated by a button, motion sensor or flow event, to circulate water only when it is likely to be needed.
Each approach has a trade-off. Timers are simple and cost-effective but do not respond to unexpected use. Temperature control maintains a more consistent service but may operate more often. Demand systems can be highly efficient, though they require a suitable installation and may not provide instant hot water at every moment.
Dedicated return pipe or retrofit solution?
The best-performing arrangement is a dedicated hot-water return pipe. It gives the pump a clear route back to the cylinder or water heater and is normally planned during new-build work, major refurbishment or a full plumbing upgrade.
Retrofitting a return pipe into an existing property can be disruptive, particularly where pipework is concealed in walls, floors or ceilings. That does not always rule out a circulation pump. Some retrofit systems use the cold-water pipe as a temporary return path, often through a thermostatic bypass valve fitted near the furthest outlet.
These systems can reduce the wait for hot water without installing a separate return line, but they need careful consideration. The cold tap may run lukewarm briefly after the system has operated, which is undesirable where a genuinely cold drinking-water supply is expected. They are also not a universal answer for every layout, and local plumbing requirements should always be checked.
For a property being altered or extended, it is usually worth considering a dedicated return while access is available. The upfront cost may be higher, but the system will generally be more controllable, more predictable and easier to maintain.
Choosing the right pump and controls
A hot-water circulation pump is not selected on pipe diameter alone. The installer or designer needs to assess the pipe lengths, route, fittings, return arrangement, required flow and expected temperature loss. Pump duty is usually modest, but oversizing is not helpful. An excessively powerful pump can create noise, unnecessary energy use and poor control of the circuit.
Materials are equally important. Because the pump handles domestic hot water, wetted components must be suitable for potable-water use and the operating temperatures involved. A pump intended solely for central heating should not simply be repurposed for domestic hot-water circulation.
Modern electronically controlled circulators can offer lower electrical consumption than older fixed-speed designs. However, energy efficiency should be judged across the complete installation. A very efficient pump cannot compensate for uninsulated pipework or a timer set to run all day.
For larger or more critical premises, consider serviceability as well as performance. Isolation valves allow a pump to be removed without draining extensive pipework. A check valve helps prevent unwanted reverse circulation. In some commercial systems, duty/standby arrangements provide resilience where loss of hot-water availability would affect operations.
Channel Island Pumps can help identify the appropriate circulating-pump category and control arrangement, particularly where an existing pump needs replacing or a new system requires a properly matched specification.
Temperature, hygiene and safety considerations
Domestic hot-water systems must be designed to control the risk of bacterial growth while preventing scalding at outlets. This is especially relevant in buildings with stored hot water, long pipe runs or periods of low occupancy.
A circulation pump does not replace correct temperature management. The cylinder or water heater, pipework temperatures, thermostatic mixing valves and commissioning process must work together. In many applications, stored water is kept at a temperature that supports hygiene control, while mixing valves reduce delivery temperatures at taps and showers to protect users.
Long, poorly controlled loops can create areas where water cools excessively or stagnates. The solution is not simply to fit a larger pump. It is to design the return circuit correctly, insulate it properly, set suitable controls and ensure the system is commissioned and maintained by a competent professional.
Signs a circulation system needs attention
A pump may be present but not delivering the expected benefit. If hot water still takes a long time to arrive, the issue could be a failed pump, an incorrectly set timer, an airlock, a closed valve, a blocked filter or a non-return valve installed in the wrong direction. Uneven performance between outlets can point to an unbalanced return network.
Noise is another warning sign. Humming, vibration or rushing water may indicate excessive pump speed, trapped air, poor mounting or a restriction in the circuit. A pump that runs constantly may be correctly configured for a particular commercial duty, but in a typical home it is worth checking whether the control schedule is wasting energy.
Before replacing a pump, confirm its role. Some systems contain separate pumps for heating, hot-water circulation, boosting and secondary circuits. Identifying the pipework and checking the existing pump label avoids ordering equipment that is physically similar but unsuitable for the job.
A hot-water circulation pump is most valuable when it solves a real distribution problem rather than being added by default. If taps are remote, usage is frequent and water is regularly wasted while waiting, a well-specified pump, insulated return circuit and sensible controls can make the whole hot-water system feel quicker, cleaner and more considered.
