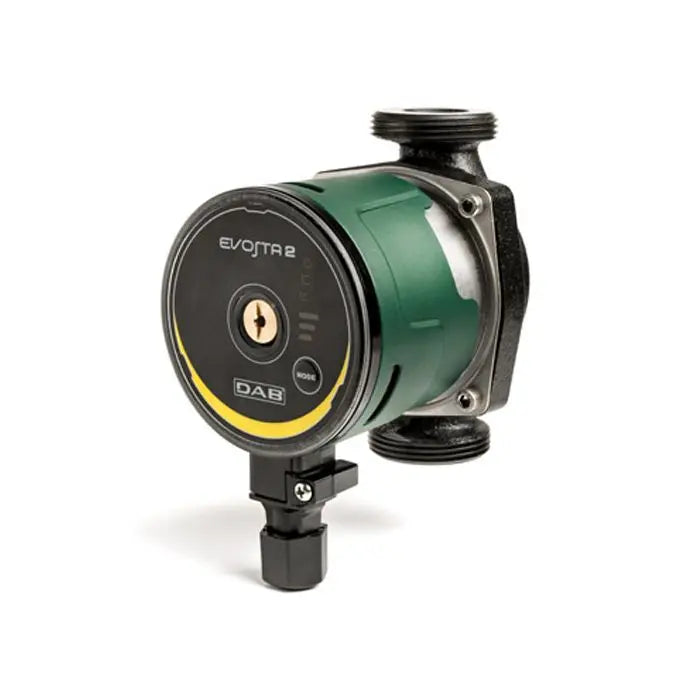

EVOSTA2 40-70/180 (1") M230/50-60

EVOSTA2 40-70/180 (1") M230/50-60 | ELECTRONIC CIRCULATORS

Professional pump solution by DAB.

• Product Code: 60185492
• Category: ELECTRONIC CIRCULATORS – EVOSTA2 SERIES (without unions)
• Application: Commercial / Domestic Pump System



  APPLICATIONS
  Low energy consumption electronic pump for water circulation in all types of domestic heating and cooling systems.

  ADVANTAGES
  The new range of EVOSTA 2 circulators by DAB combines the strength of an mechanical circulator with the benefits of the electronic circulator.
  Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and
  the integrated bleeding plug, the EVOSTA 2 family ranks as one of the best products in the category in terms of performance and reliability.

  The range of EVOSTA 2 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.



  Leveraging advanced anti-clogging technology, the EVOSTA prevents motor failure due to limescale buildup within the water, significantly lowers the risk of malfunctions upon restart, ensures smooth and uninterrupted operation over time.

  TECHNICAL DATA

  • SKU	60185492
    Manufacturer	DAB
    Manufacturers Warranty	5 Years
    Weight	3.0 Kg
    Dimensions	180mm (l) x 134.6mm (d) x 91mm (w)
    Connection Type	1 1/2" bsp Male
    Motor Size (kW/W)	35W
    Full Load Current (FLC)	0.043 - 0.32A
    Voltage	240V 1Ph 50Hz
    Cable Length	1.5m
    Max Flow	3.6m3/hr
    Max Head	6m
    Max Pressure	0.6 Bar
    Max Temperature	110°C
    Material	Cast Iron
    Seal Type	EPDM

  Technical Specs:

  • Evosta2 Instruction Manual
  • Evosta2 Technical Sheet

Contact us for technical specifications, sizing, and installation support.
