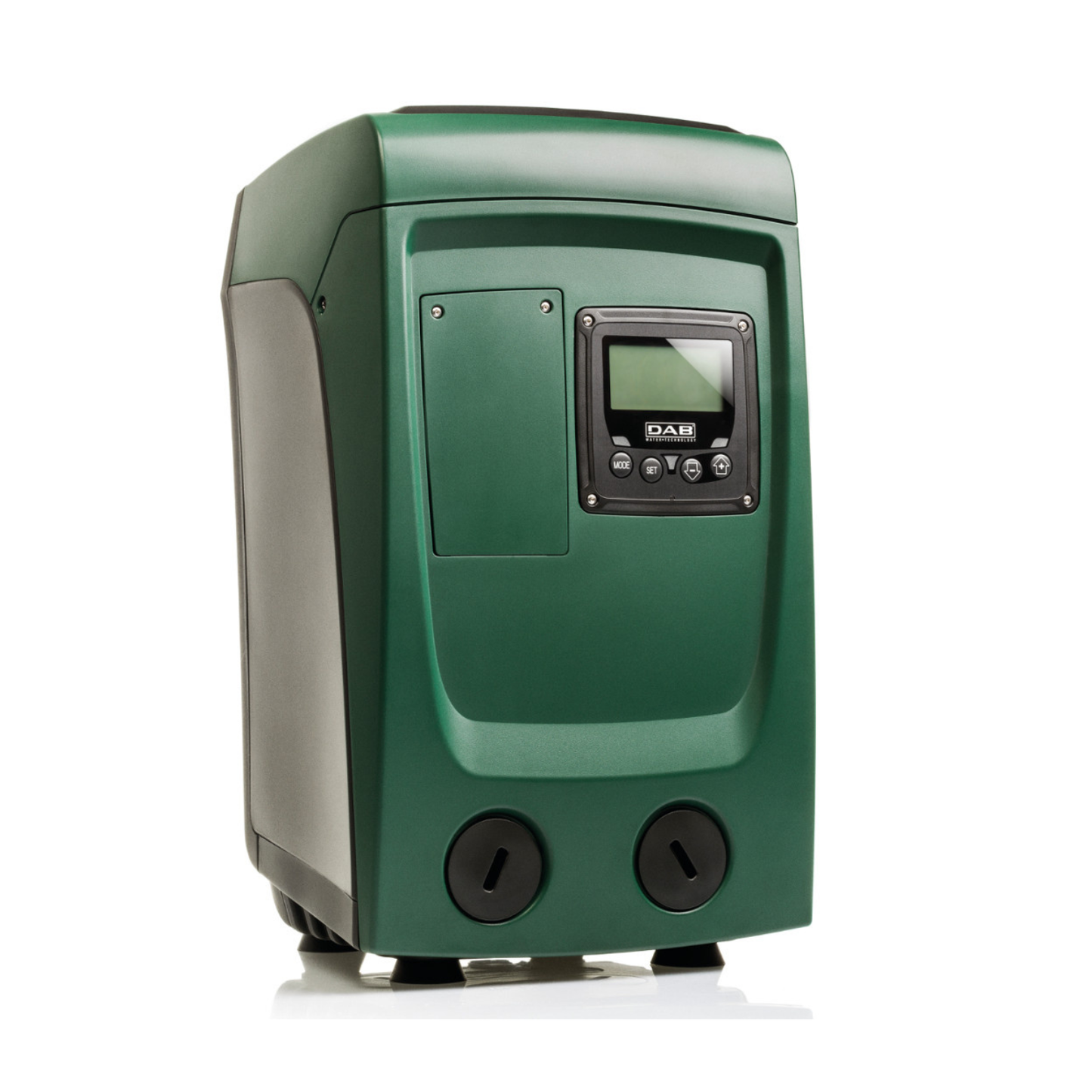

ESYBOX MINI 3 60212601

The ESYBOX MINI 3 booster pump by DAB provides compact, integrated pressure management for domestic potable water and gardening systems, delivering steady pressure up to a 55 m head while keeping noise and energy use low.

• Performance: 850 W motor, maximum flow up to 4.8 m³/h (80 l/min) and maximum head 55 m, with a reported maximum pressure of 7.5 bar.
• Intended fluid and temperatures: For clean, non‑abrasive potable water; liquid temperature range 0°C to +35°C for domestic use (up to +40°C for other uses).
• Installation limits: Maximum suction depth 8 m; unit weight 15.0 kg and plastic construction for a compact footprint.
• Controls and configuration: Integrated DConnect remote control capability and support for grouping up to two pumps.
• Compliance and support: Listed as ACS certified and supplied with a 3‑year manufacturer’s warranty.

Because the unit is fully integrated and designed for constant‑pressure operation, it simplifies pressure regulation in small domestic systems and garden applications while reducing noise and optimizing energy use compared with conventional booster setups.
