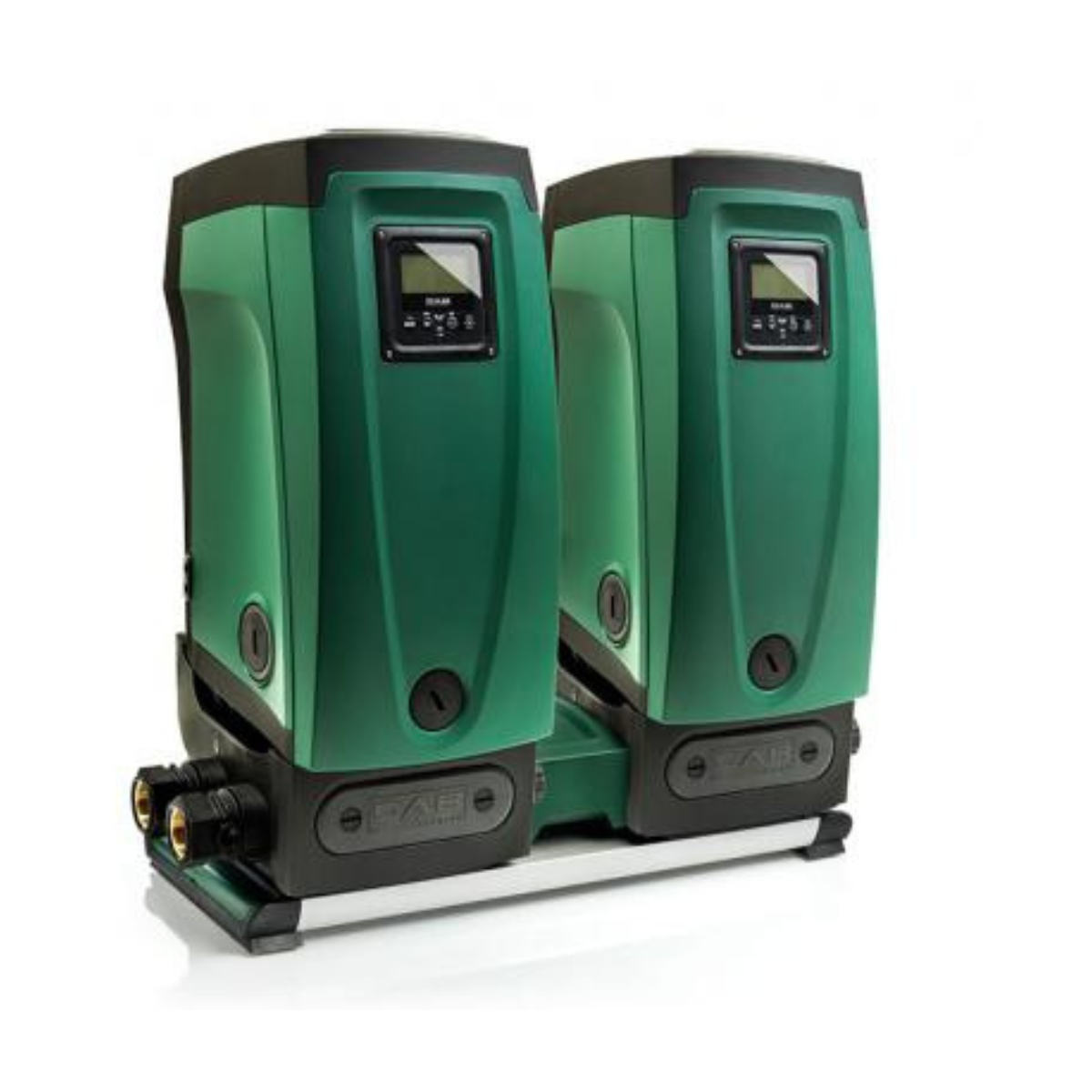

DAB ESYTWIN Complete Booster Set (2 x ESYBOX) | SKU: 60218693

Intelligent Twin-Pump Pressure Boosting System

The DAB ESYTWIN Complete Booster Set combines two high-performance ESYBOX variable-speed pumps to provide reliable, energy-efficient water pressure boosting for residential, commercial, and irrigation applications. Designed to deliver constant pressure even during periods of high demand, the ESYTWIN system automatically adjusts pump performance to suit water usage, reducing energy consumption while ensuring maximum comfort.

Perfect for large homes, apartment buildings, hotels, commercial premises, and water storage systems, this advanced booster set offers exceptional performance with ultra-quiet operation and built-in smart controls.

Key Features

✅ Twin ESYBOX pumps for increased flow capacity and reliability

✅ Variable-speed technology for energy savings and constant pressure

✅ Ultra-quiet operation at just 43 dB

✅ Self-priming up to 8 metres

✅ Integrated 2-litre expansion vessel

✅ Wireless connectivity and smart control interface

✅ Easy installation with flexible suction and discharge connections

✅ Alarm history and guided setup wizard

✅ Compatible with DAB DConnect remote monitoring system (sold separately)

High Performance Water Boosting

The ESYTWIN system delivers powerful performance for demanding water applications:

• Maximum Flow: 14.4 m³/h
• Maximum Head: 65 metres
• Maximum Pressure: 8 bar
• Self-Priming Lift: 8 metres

Whether boosting mains-fed systems, drawing from underground tanks, or supplying multiple outlets simultaneously, the ESYTWIN provides stable water pressure throughout your property.

Advanced Variable-Speed Technology

Each ESYBOX pump features an integrated inverter that automatically adjusts motor speed according to demand. This intelligent control system:

• Maintains constant water pressure
• Reduces energy consumption
• Minimises pump wear
• Protects against water hammer
• Improves overall system efficiency

Ultra-Quiet Design

Designed with sound-absorbing ABS housing and advanced noise-reduction technology, the ESYTWIN operates at an exceptionally low 43 dB, making it suitable for installation within residential and commercial buildings where quiet operation is essential.

Smart Control & Connectivity

The integrated display can be adjusted to suit the installation position, making system setup and operation straightforward. Built-in wireless capability allows connection to the DAB ecosystem, while the optional DConnect Box enables remote monitoring and control from anywhere.

Technical Specifications

Manufacturer: DAB

SKU: 60218693

Power: 2 × 1550W

Voltage: 240V Single Phase, 50Hz

Maximum Flow: 14.4 m³/h

Maximum Head: 65m

Maximum Pressure: 8 Bar

Maximum Liquid Temperature: 40°C

Connections: 1¼" Suction & Delivery

Material: High-Performance Technopolymer

Weight: 80kg

Warranty: 3 Years

Ideal Applications

• Domestic water pressure boosting
• Apartments and multi-occupancy buildings
• Hotels and commercial premises
• Rainwater harvesting systems
• Underground water storage tanks
• Irrigation and garden watering systems
• Borehole and stored water supply systems
