AQUAGUARD AG100 Series · Horizontal AG Horizontal Range

Name: AQUAGUARD AG100 Series · Horizontal AG Horizontal Range
Brand: AquaGuard
Availability: OutOfStock

AQUAGUARD AG100 Series · Horizontal AG Horizontal Range

Tax included.

Out of stock

AG Horizontal Range

AG100 Series BS 9251:2021

CAT 1–4 | FLOW 25–500 L/min | PRESSURE 1–10 Bar

The AG series of residential fire sprinkler pumps is designed for BS 9251:2021 Category 1–4 applications. Horizontal multistage pumps, pre-assembled and skid mounted for fast installation, available in AG75, AG100, AG150, AG250 and AG300 sub-ranges.

316 stainless steel manifold, 304 stainless casing & impellers
LPCB twin pressure switch & BS EN 12259-2 flow switch
Volt-free fire and fault contacts
Direct online or soft starter (over 3 kW)
Monitored ball valves for Category 2–4

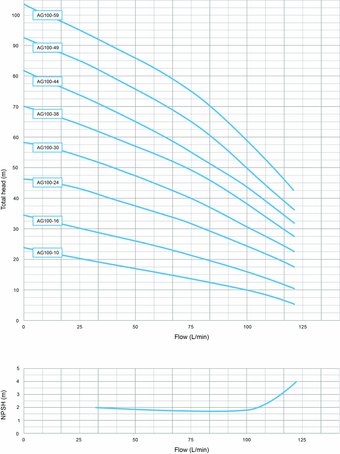

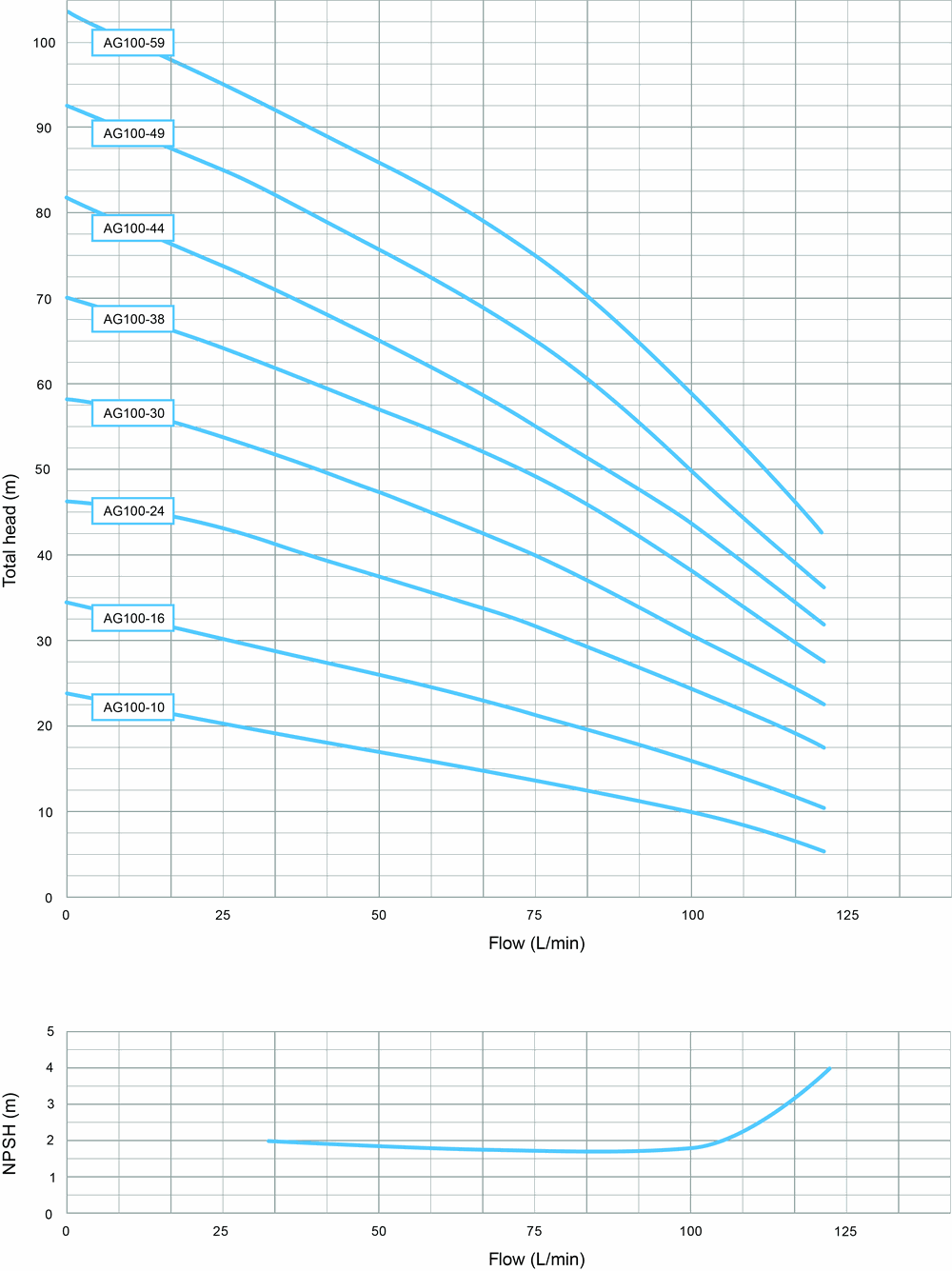

Full AG Model Data

DATA SHEET

AG series — range at a glance
Sub-range	Motor power	Supply	Suction / discharge	Models
AG75	0.33–1.3 kW	230V 1ph	DN32 / DN25	AG75-06 → AG75-34
AG100	0.45–2.2 kW	230V 1ph / 400V 3ph	DN32 / DN25	AG100-10 → AG100-59
AG150	0.75–3.0 kW	230V 1ph / 400V 3ph	DN40 / DN32	AG150-12 → AG150-67
AG250	1.5–5.5 kW	230V 1ph / 400V 3ph	DN50 / DN40	AG250-17 → AG250-75
AG300	2.2–5.5 kW	400V 3ph	DN50 / DN40	AG300-20 → AG300-57
