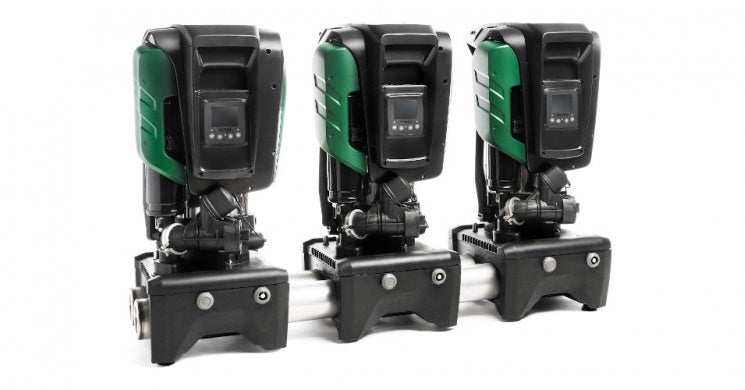

DAB 3 Esybox MAX 60-120T booster set 400v 60187191

The DAB E.Sybox Max 60-120T booster set 400V delivers constant system pressure by combining pumps, inverter control and integrated hydraulic components in a single compact unit. It maintains steady water pressure through variable speed inverter technology that adjusts motor speed to demand while on-board pressure sensors and an integrated display provide direct control and monitoring.

• Electronic multi-impeller pump with PM motor: water-cooled permanent magnet motor design supports quieter, more efficient operation compared with standard motors.
• Integrated control and sensing: pressure sensors, variable speed inverter and display enable automatic pressure regulation without separate controllers.
• Built-in hydraulic components: non-return valve and expansion vessel reduce the need for external fittings and simplify installation.
• Durable construction: technopolymer pump body and impellers, a stainless steel outer jacket and AISI 303 stainless steel motor shaft provide mechanical robustness for booster applications.
• BMS integration option: compatible with the DAB esy I/O expansion module to enable connection to building management systems.

Designed for boosting applications, this booster set combines hydraulic and electronic elements to provide constant-pressure performance and energy-efficient operation where steady pressure is required.
