Grundfos CU 301 Complete Constant Pressure Control Package

The Grundfos CU 301 package provides constant pressure control for a compatible Grundfos SQE submersible pump. It lets you set the required system pressure and monitor pump operation and alarms from the control unit.

The CU 301 communicates with the pump through its existing pump cable, so no separate communication cable is needed between the control unit and the pump.

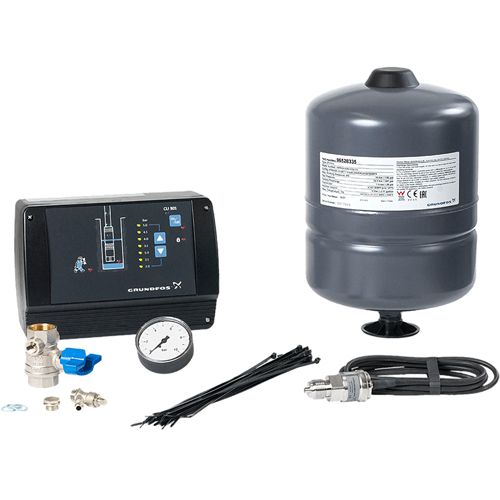

Package contents

• CU 301 control unit with pressure displayed in bar
• 8 litre diaphragm tank
• Ball valve
• PT 0–6 bar pressure sensor kit
• 10 bar pressure gauge, Ø63 mm
• 20 cable clips

Please note: This package does not include a pump.
