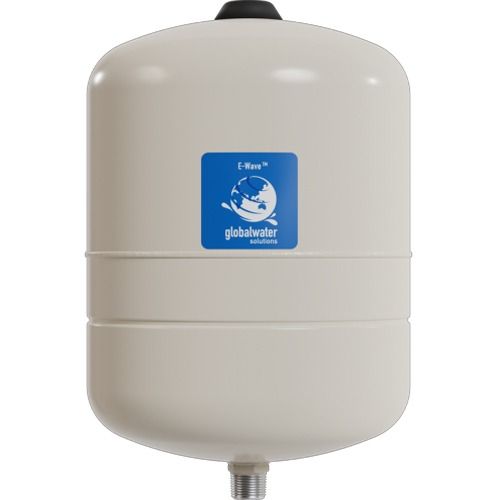

GWS E-Wave 24L Inline Pressure Vessel | PEB-24LX

The GWS E-Wave™ 24L Inline Pressure Vessel is a reliable and cost-effective solution for maintaining consistent water pressure in domestic and light commercial water systems. Featuring a high-grade butyl diaphragm and virgin polypropylene liner, the E-Wave tank delivers efficient air and water separation for long-lasting performance and reduced pump cycling.

Designed for maintenance-free operation, the tank incorporates a patented stainless steel water connection and leak-free O-ring sealed air valve cap. Its durable carbon steel shell is protected by a dual-layer polyurethane paint finish, providing excellent corrosion resistance and extended service life.

Ideal for booster sets, irrigation systems, thermal expansion applications, and hydraulic hammer protection.

Key Features

• 24-litre capacity pressure vessel
• High-grade butyl diaphragm for reliable performance
• Virgin polypropylene liner prevents waterlogging
• Patented stainless steel water connection
• Leak-free O-ring sealed air valve cap
• Maintenance-free design
• Corrosion-resistant carbon steel shell
• Dual-layer polyurethane paint finish
• Factory pre-charged to 1.9 bar (28 psi)
• Suitable for potable water systems

Applications

• Domestic water booster systems
• Thermal expansion systems
• Irrigation systems
• Hydraulic hammer arresting
• Residential pressure management systems

Technical Specifications

• Manufacturer: GWS
• Model: E-Wave 24L
• Part Number: PEB-24LX
• Capacity: 24 Litres (6.34 Gallons)
• Connection: 1" BSP Male
• Maximum Pressure: 10 Bar
• Maximum Temperature: 90°C
• Pre-Charge Pressure: 1.9 Bar (28 PSI)
• Material: Stainless Steel Connection with Carbon Steel Shell
• Dimensions: 444mm (H) × 290mm (W)
• Weight: 5.0kg
• Warranty: 5 Years

Benefits

The GWS E-Wave™ range helps reduce pump starts, minimise pressure fluctuations, protect pipework from water hammer, and extend the lifespan of pumping equipment. Its compact inline design makes installation simple while ensuring dependable performance for years to come.
