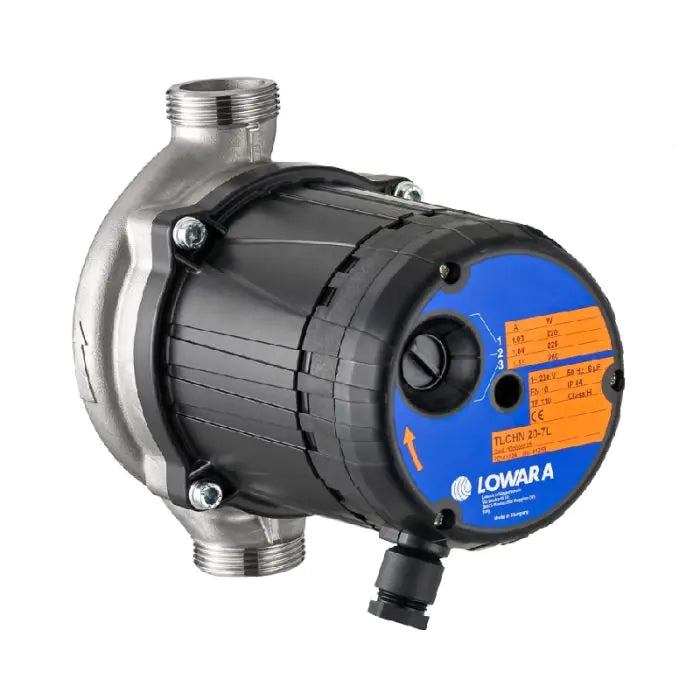

Lowara TLCHN 25-12L SHW Stainless Steel Circulator 240v

Lowara TLCHN 25-12L SHW Stainless Steel Circulator 240v - 105016205

Fixed speed single phase glandless wet rotor circulators with standard induction motor. Bearings are lubricated by the pumped media. Designed for hot water recirculation in building and industrial installations to provide immediate availability of hot water.

Motor

• Wet rotor type, with bearings lubricated by the pumped liquid
• Axial and radial bearings made of ceramic
• Single-phase 230 V 50 Hz power supply
• Terminal box axially integrated in the motor
• Three-speed hand selector motor
• Insulation class 180 (H)
• Protection class IP 44

Materials

• Pump Body - Stainless steel
• Impeller - Composite material
• Shaft - Ceramic
• Inner Jacket - Stainless steel
• Wear Ring - Ceramic
• Bearings - Ceramic
• Gaskets - EPDM
