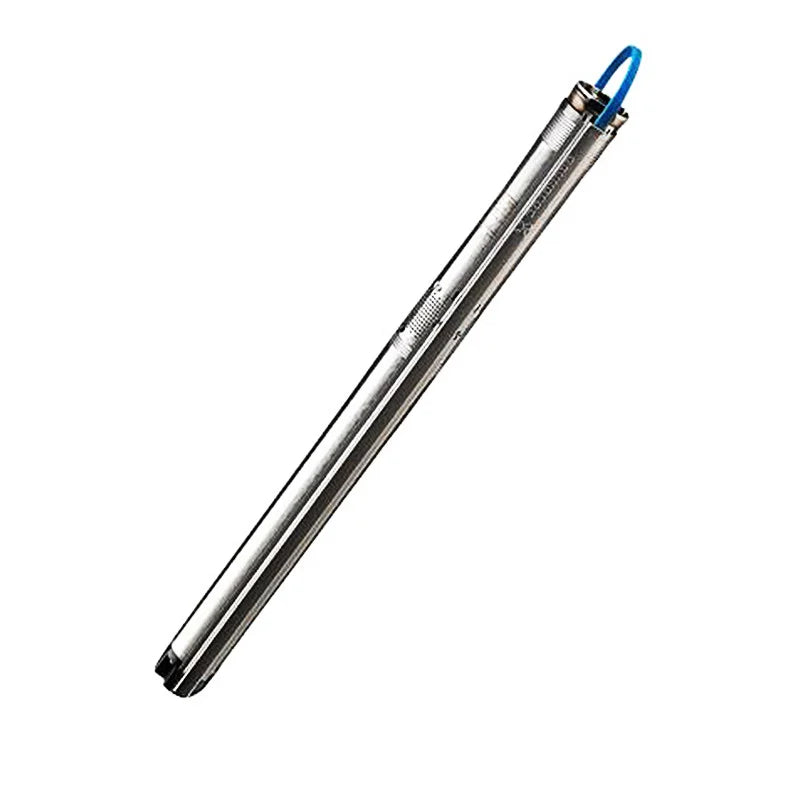

Grundfos SQ 2-85 Submersible Borehole Pump
The Grundfos SQ 2-85 is a compact 3" submersible borehole pump designed for domestic water supply, irrigation, pressure boosting, and groundwater applications. Its slim design allows installation in narrow boreholes, while the high-efficiency permanent magnet motor delivers reliable performance and energy-efficient operation.
| Specification |
Details |
| Model |
Grundfos SQ 2-85 |
| Pump Type |
3" Submersible Borehole Pump |
| Flow Rate |
Up to 2 m³/h |
| Maximum Head |
Up to 85m |
| Motor Power |
1.15 kW |
| Power Supply |
230V Single Phase |
| Motor Type |
Permanent Magnet Motor |
| Construction Material |
Stainless Steel |
| Borehole Size |
Suitable for 3" boreholes and larger |
| Applications |
Domestic Water Supply, Irrigation, Pressure Boosting, Deep Borehole Systems |
Key Features
🟢 Up to 2 m³/h flow rate
🟢 Up to 85m head for deep borehole installations
🟢 1.15 kW high-efficiency permanent magnet motor
🟢 Dry-run protection built in
🟢 Soft-start technology reduces motor wear
🟢 Overload and voltage protection
🟢 Corrosion-resistant stainless steel construction
🟢 Compact 3" design for narrow boreholes
🟢 Suitable for continuous or intermittent operation
