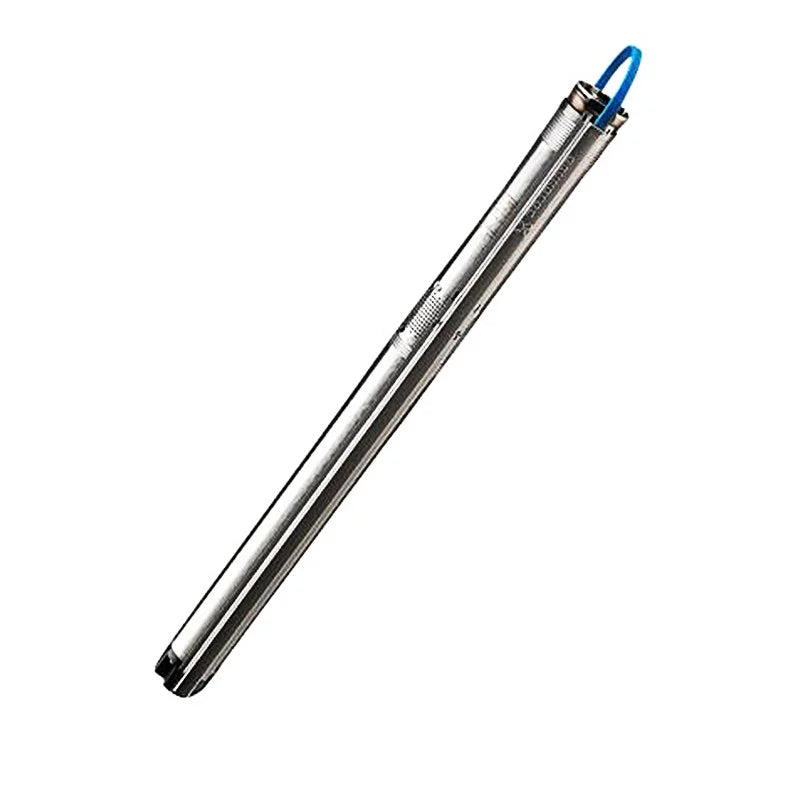

Grundfos SQE 3-95 Submersible Borehole Pump
The Grundfos SQE 3-95 is a high-efficiency 3" variable-speed submersible borehole pump designed for domestic water supply, irrigation, pressure boosting, and groundwater applications. Its slim design makes it suitable for narrow boreholes, while the variable-speed motor can be paired with a Grundfos CU301 controller to provide constant water pressure.
| Specification |
Details |
| Model |
Grundfos SQE 3-95 |
| Pump Type |
3" Submersible Borehole Pump |
| Flow Rate |
Up to 3 m³/h |
| Maximum Head |
Up to 95m |
| Motor Power |
1.68 kW |
| Power Supply |
230V Single Phase |
| Motor Type |
Variable-Speed Permanent Magnet Motor |
| Construction Material |
Stainless Steel |
| Borehole Size |
Suitable for 3" boreholes and larger |
| Control Compatibility |
Grundfos CU301 Constant Pressure Controller |
| Applications |
Domestic Water Supply, Irrigation, Pressure Boosting, Groundwater Systems |
Key Features
🟢 Variable-speed operation for constant water pressure
🟢 Up to 95m head for deep borehole installations
🟢 1.68 kW high-efficiency motor
🟢 Dry-run protection built in
🟢 Soft-start technology reduces wear and water hammer
🟢 Overload and voltage protection
🟢 Corrosion-resistant stainless steel construction
🟢 Compact 3" design for narrow boreholes
🟢 Compatible with Grundfos CU301 constant-pressure control systems
