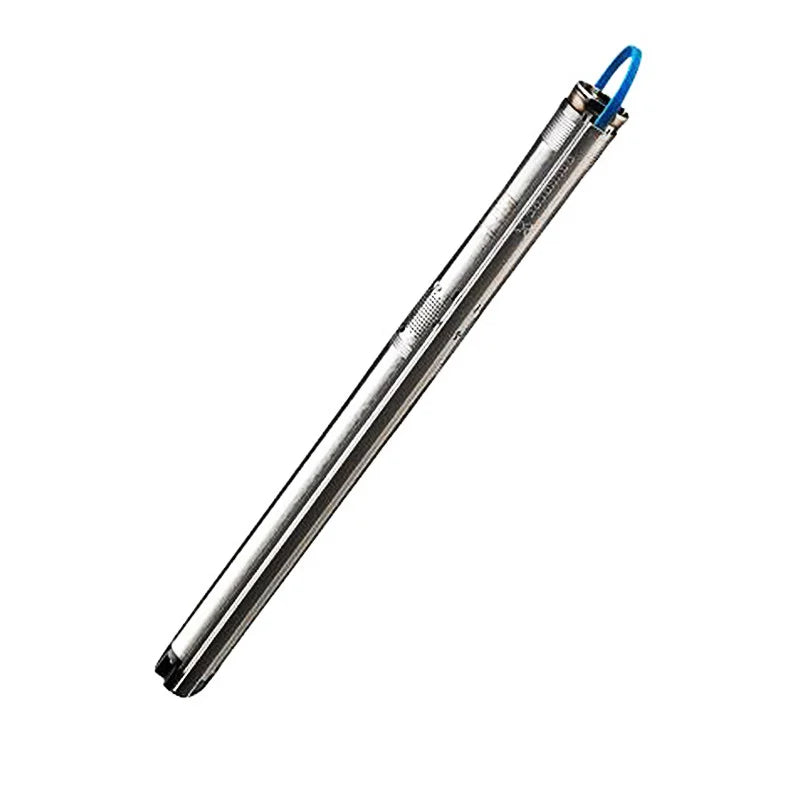

Grundfos SQE 5-15 Submersible Borehole Pump
The Grundfos SQE 5-15 is a compact 3" variable-speed submersible borehole pump designed for domestic water supply, irrigation, pressure boosting, and groundwater applications. When paired with a Grundfos CU301 controller, it provides constant water pressure and efficient operation throughout the system.
| Specification |
Details |
| Model |
Grundfos SQE 5-15 |
| Pump Type |
3" Submersible Borehole Pump |
| Flow Rate |
Up to 5 m³/h |
| Maximum Head |
Up to 15m |
| Power Supply |
230V Single Phase |
| Motor Type |
Variable-Speed Permanent Magnet Motor |
| Construction Material |
Stainless Steel |
| Borehole Size |
Suitable for 3" boreholes and larger |
| Control Compatibility |
Grundfos CU301 Constant Pressure Controller |
| Applications |
Domestic Water Supply, Irrigation, Pressure Boosting, Water Transfer |
Key Features
🟢 Variable-speed operation for constant water pressure
🟢 High-efficiency permanent magnet motor
🟢 Dry-run protection built in
🟢 Soft-start technology reduces wear and water hammer
🟢 Overload and voltage protection
🟢 Corrosion-resistant stainless steel construction
🟢 Compact 3" design for narrow boreholes
🟢 Ideal for homes, gardens, irrigation systems, and small water supply applications
