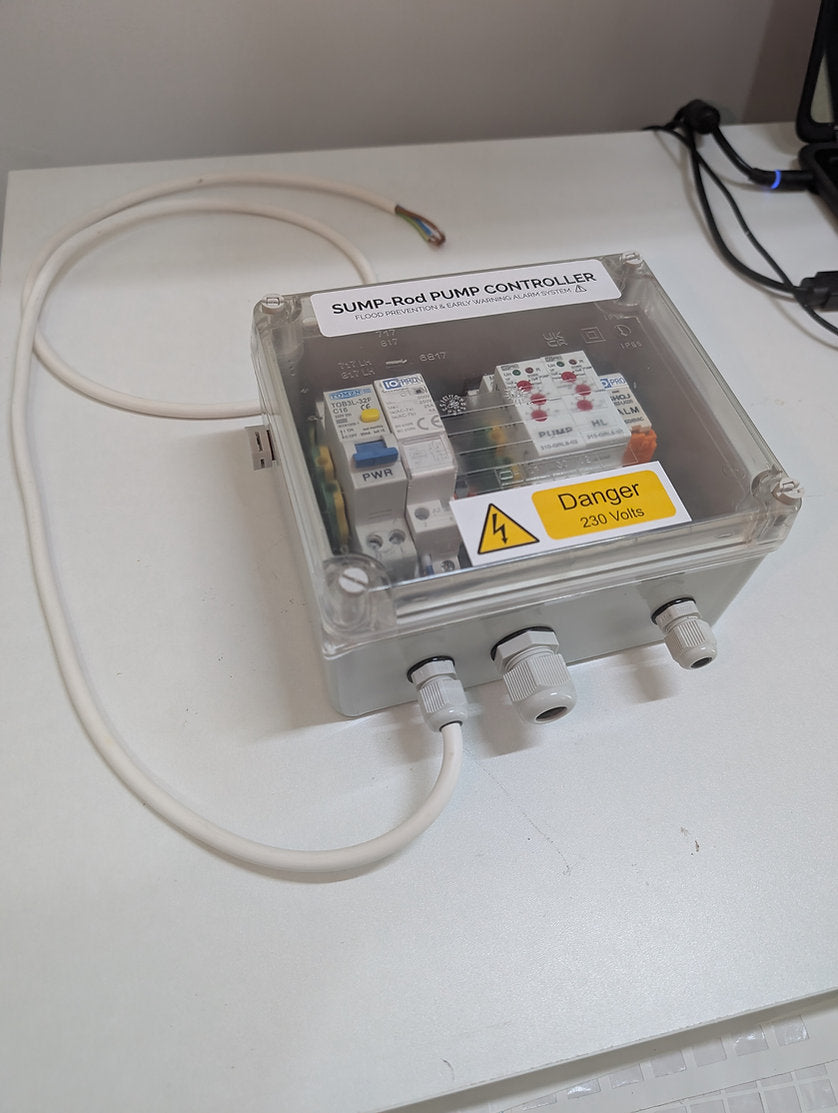

SUMP-Rod PC-240 MF Sump Pump Controller + Mains Voltage Fail Alarm

SUMP-Rod Single Pump Controller with Mains Failure Alarm (240V, 1 Pump)

IP65-rated single-phase pump controller for automatic operation of one pump up to 2kW, complete with mains failure alarm, high-level alarm functions, and pre-wired connections. Housed in a clear-lid enclosure with anti-condensation vent and designed for use with SUMP-Rod level sensors.

Features:

• Controls 1 x 240V single-phase pump (max. 2kW)
• Integrated mains failure and high-level alarm monitoring
• 16A C-Curve 2-pole RCBO
• 2 x 310-GRL8-02 liquid level relays
• 2-pole pump contactor (max. 9A)
• MM4 alarm handling PCB
• Mute button with flashing alarm indicator
• Approx. 6-week mains failure alarm backup via supplied PP3 battery
• Supplied with combined amber flashing beacon and buzzer
• 2 x SPCO failsafe volt-free alarm outputs for BMS/telemetry (de-energise on alarm)
• IP65 clear-lid enclosure with anti-condensation vent

Specification:

• Supply: 240V AC, Single Phase
• Pump Capacity: 1 Pump, max. 2kW
• Alarm Outputs: 2 x SPCO volt-free, 0.5A @ 240V AC
• Cable Entries: Mains in, SUMP-Rod sensor in, pump supply out
• Enclosure Size: 240 x 180 x 88mm
• Protection Rating: IP65

Designed specifically for use with SUMP-Rod Pump Controllers and level sensing systems.
