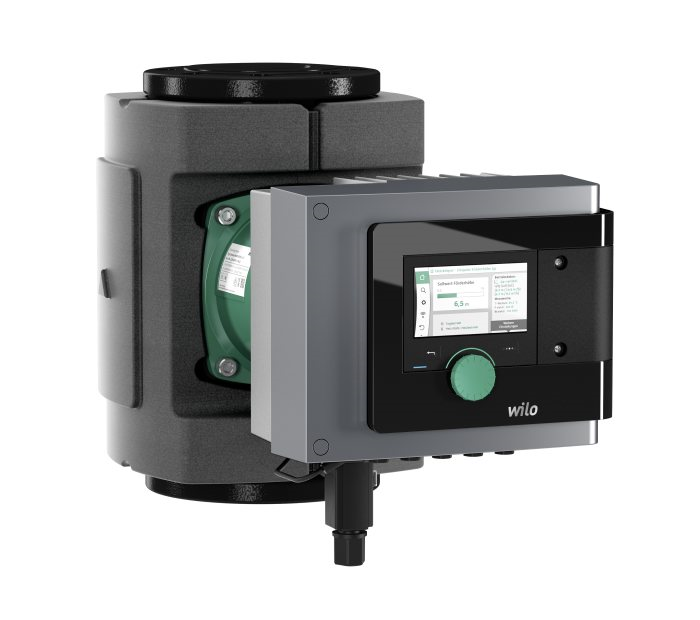

Wilo Stratos MAXO 40/0,5-16 250 PN6/PN0 Single Head Circulating Pump 240v

Wilo Stratos MAXO 40/0,5-16 250 PN6/PN10 Single Head Circulating Pump 240V

Part Number: 2164585

The Wilo Stratos MAXO 40/0,5-16 250 is a premium high-efficiency smart circulating pump designed for heating, cooling and HVAC applications. Featuring an EC motor with intelligent electronic control, it automatically adjusts performance to system demand, delivering maximum efficiency and reduced energy consumption.

Suitable for heating water, chilled water and water/glycol mixtures, the Stratos MAXO offers advanced control functions, integrated energy monitoring and connectivity features for optimised system performance.

Key Features

• High-efficiency EC motor with automatic performance adjustment
• Suitable for heating, cooling and water/glycol systems
• Wilo Dynamic Adapt Plus technology for maximised energy savings
• Constant or variable differential pressure control
• Constant temperature and constant flow control modes
• Integrated heat and cooling energy measurement
• Automatic no-flow shutdown and dry-run protection
• Automatic venting and deblocking functions
• Plain-text fault and warning messages
• Integrated full motor protection
• Energy Efficiency Index (EEI) ≤ 0.19

Display Functions

• Control mode
• Setpoint
• Volume flow
• Temperature
• Power consumption
• Energy consumption
• Active operating status and alerts

Technical Specifications
