A private water supply can feel straightforward until pressure drops during a busy morning, a pump runs continuously, or the tap produces air instead of water. This private well pump guide explains how to specify a dependable system around the water source, property demand and controls - rather than choosing a pump on motor size alone.
For homes, farms and commercial premises, the pump is only one part of the installation. The pipework, pressure vessel, switchgear and protection devices all affect how reliably water reaches the building. Correct selection reduces cycling, protects the motor and provides consistent pressure where it is needed.
Start with the water source, not the pump
A well or borehole has two critical measurements: its static water level and its pumping water level. The static level is where the water stands when no water is being drawn. The pumping level is where it falls while the pump is operating. The difference between them indicates how the source responds to demand.
You also need the source yield. A pump that can deliver more water than the well can replenish may lower the water level too far, draw in sediment or run dry. A higher-capacity pump is not automatically a better pump. It must suit the sustainable yield of the source as well as the building’s expected demand.
Water quality matters at this stage too. Sand, silt, iron, manganese and aggressive water can shorten the life of impellers, seals and pressure controls. A water test may point to filtration or treatment equipment, but it also helps determine the appropriate pump materials and whether additional protection is sensible.
Private well pump guide: calculate the duty point
The duty point is the flow rate and pressure the pump must achieve in service. It is the most useful starting point for comparing pump curves. Flow is commonly stated in litres per minute or cubic metres per hour, while pressure is often expressed as bar or metres of head.
A domestic property may need enough flow for several outlets operating together, but peak demand should be realistic. Designing for every tap, appliance and outside outlet to run at once can lead to an oversized system. Conversely, a system sized only for one basin tap will disappoint as soon as a washing machine and shower are used together.
Total dynamic head combines several requirements: the lift from the pumping water level, the height to the highest outlet, the required outlet pressure, and friction losses through pipework, valves, filters and fittings. As a useful conversion, 1 bar is approximately 10 metres of head. Friction can be significant on long runs or undersized pipe, so it should not be treated as an afterthought.
Before selecting equipment, record these details:
- well or borehole depth, static level and pumping level;
- tested or estimated sustainable yield;
- pipe diameter, pipe length and rise to the highest outlet;
- desired flow and pressure at the property; and
- electrical supply, including available phase and cable run.
Choose the pump type for the installation
A submersible borehole pump sits below the water level and pushes water upwards. It is usually the preferred choice for deeper wells and boreholes because it avoids the suction limitations of a surface-mounted pump. It is also quiet in operation and does not need priming in the same way as a surface pump.

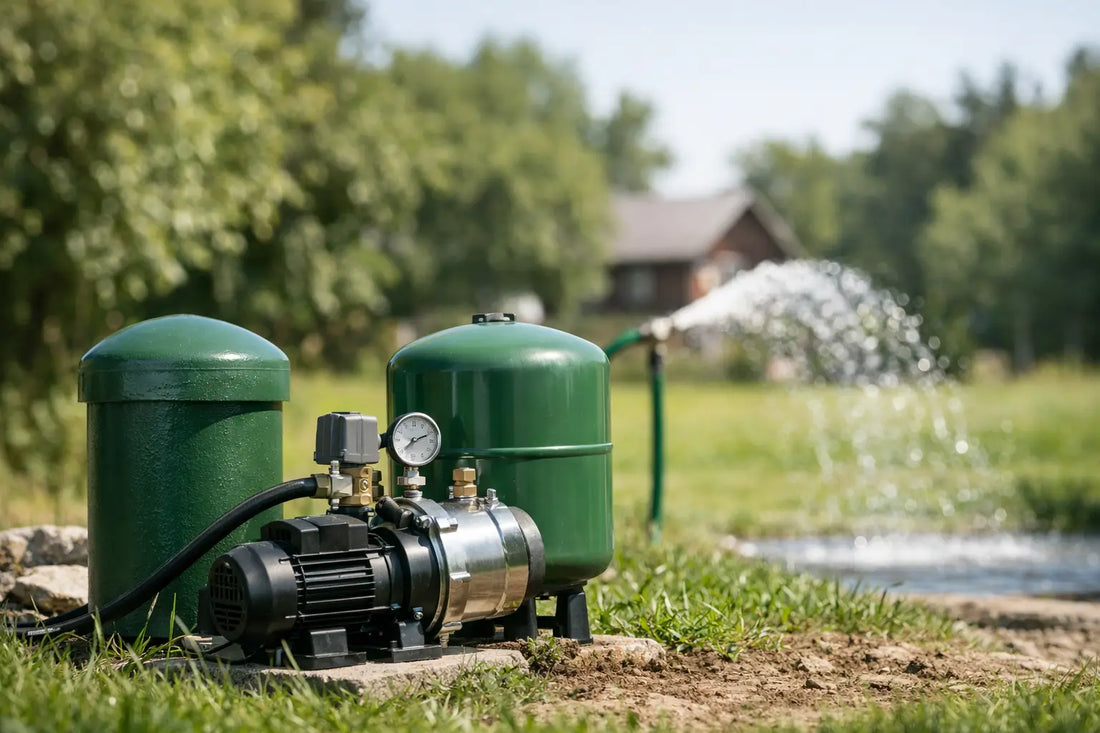

A surface-mounted jet or centrifugal pump can be appropriate where the water level is shallow enough for the pump’s suction capability, access is good and the installation needs to remain above ground. The practical suction lift is limited, however, and performance falls as the water level drops. Long suction pipework, air leaks and poor foot valves can create unreliable operation.
The physical dimensions of the source are equally important. A borehole pump must fit within the casing while leaving sufficient clearance for cooling water to pass the motor. In a large-diameter well, a flow sleeve may be required to direct water past the motor. Never assume that a pump fits simply because its nominal diameter looks suitable.
Pressure vessels and controls protect the system
A pressure vessel stores a small volume of pressurised water. This allows the pump to stop after demand ends rather than starting for every small draw-off. It reduces motor starts, smooths pressure changes and can extend the working life of switches, contactors and the pump itself.
Vessel size depends on pump flow, pressure-switch settings and acceptable starts per hour. A very small vessel may save space initially but cause rapid cycling. An excessively large vessel is not usually harmful, but it costs more and requires room. The practical aim is a sensible run time for the pump at normal low demand.
A conventional pressure switch starts the pump at a lower cut-in pressure and stops it at a higher cut-out pressure. The vessel air pre-charge must be set correctly, normally just below the cut-in pressure when the water side is fully drained. If it is too high, little water enters the vessel. If it is too low, the system may suffer poor drawdown and unnecessary cycling.
Electronic pump controllers and variable-speed systems can offer more constant pressure and may suit changing demand, larger properties or commercial applications. They are not a cure for an undersized source, blocked filter or poorly designed pipework. Their benefits depend on correct commissioning and compatible equipment.
Do not overlook dry-run and electrical protection
Dry running is one of the most damaging conditions for a well pump. Without water for cooling and lubrication, a pump can overheat or suffer seal damage quickly. A low-water probe, current-sensing controller, pressure-based protection or borehole level sensor can stop the pump when water availability falls below a safe point.
The best method depends on the source and control arrangement. A level sensor gives direct feedback from the water level, while electronic dry-run protection can detect the altered load created when a pump loses water. In many installations, combining suitable protection methods offers better reassurance than relying on a single device.
Electrical protection deserves the same care. Motor rating, supply voltage, cable size, starting current and cable length must all be considered. A long borehole cable can experience voltage drop, particularly during starting. The control panel should provide appropriate overload protection, and electrical work must be completed and tested by a competent person.
Installation details that affect performance
The rising main should include a non-return valve where required by the pump design and system layout. Its purpose is to prevent reverse flow and maintain pressure, but a poorly placed or faulty valve can contribute to pressure loss or repeated starts. Use pipework rated for the working pressure, including the higher pressure that can occur at pump shut-off.
Install isolation valves so that filters, vessels and controls can be serviced without draining unnecessary sections of the system. If sediment is possible, position suitable filtration where it can be maintained easily. A blocked filter often presents as low flow and may be mistaken for pump failure.
Protect exposed pipework against freezing and support it properly to avoid strain on fittings. Where a private supply feeds drinking-water outlets, ensure any tank, fittings and installation practices are appropriate for potable water. Local requirements can vary, so check the applicable standards before commissioning or altering a supply.
Maintain the system before it becomes an emergency
A private supply benefits from planned checks. Listen for changed pump noise, watch the pressure gauge and investigate any increase in starts and stops. A system that once held pressure but now cycles when no water is being used may have a leaking non-return valve, a waterlogged vessel, a pressure leak or a fault in the controls.
At least annually, check the vessel pre-charge, inspect accessible cables and fittings, clean serviceable filters, and test any dry-run or alarm functions in line with the manufacturer’s instructions. Review water quality periodically, especially after heavy rainfall, groundworks or a change in taste, colour or clarity.
Low pressure does not always mean the pump has failed. First check isolation valves, filters, pressure settings and leaks. If the pump runs but cannot achieve cut-out pressure, compare its current performance with the original duty point. Falling water level, worn hydraulics, a damaged pipe or a control issue can all produce similar symptoms.
A well pump system should be specified as a complete water supply, not as a pump added to a pipe. Good site information, a realistic duty point and the right protection will give the installation its best chance of providing quiet, dependable water for years to come.
