Lowara Resvari Plus D 750 5-3 Variable Speed Booster Set 240V

Part Number: 135G01062

The Lowara Resvari Plus D 750 5-3 is a compact, twin-pump variable speed booster set designed to deliver outstanding water pressure performance for domestic, light commercial and washdown applications. Combining a 750-litre Category 5 break tank, dual Lowara SCUBA submersible pumps and intelligent variable speed control, the system provides reliable, energy-efficient boosting where a constant water supply and pressure are critical.

Powered by the latest generation Lowara SCUBA multistage submersible pumps, the Resvari Plus D delivers high performance while achieving energy savings of up to 70% compared to traditional fixed-speed booster systems. The intelligent control system automatically adjusts pump speed to match demand, ensuring consistent pressure and reduced operating costs.

Its dual-pump configuration can operate in either Duty/Assist or Duty/Standby mode, providing enhanced performance during peak demand and built-in redundancy for maximum reliability.

With a footprint comparable to a standard washing machine, the Resvari Plus D can easily pass through standard doorways and fit into restricted plant rooms and service areas without requiring disassembly.

Key Features

• 750 litre Category 5 break tank
• Twin Lowara SCUBA submersible pumps
• Integrated variable speed control for improved efficiency
• Up to 70% energy savings compared to fixed-speed systems
• Quiet, compact multistage pump technology
• Duty/Assist or Duty/Standby operation
• Compact footprint for easy installation
• Suitable for domestic, commercial and washdown applications
• WRAS-approved components for potable water systems
• Standard volt-free fault contact for BMS integration

Suitable for Potable Water Applications

The Resvari Plus D is designed for potable water installations and incorporates high-quality WRAS-approved components throughout:

• WRAS-approved break tank, pressure vessel and fittings
• Stainless steel manifold and pump casings
• Brass isolation valves
• Category 5 compliant break tank
• AB air gap providing backflow protection against mains contamination

Pump Specification

• Pump Model: 2 × Lowara SCUBA 5SC4/07/5 C L05
• Pump Type: Stainless steel multistage submersible pumps
• Approval: WRAS Approved

Performance & Design

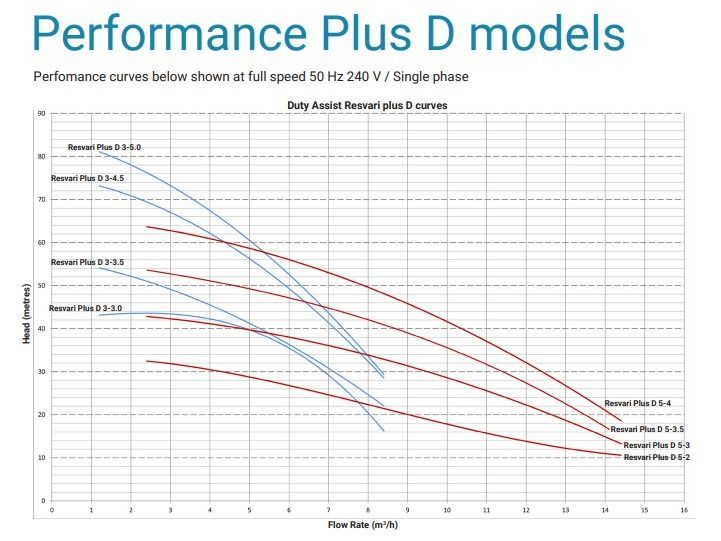

The Resvari Plus range consists of eight performance options, available in both 3 m³/h and 5 m³/h configurations, delivering pressures from 2 to 5 bar at the best efficiency point.

The modular design allows for a choice of break tank sizes from 500 litres to 1500 litres, providing flexibility for a wide range of installation requirements.

Typical Applications

• Domestic cold water boosting
• Apartment blocks and residential developments
• Commercial buildings
• Schools and educational facilities
• Leisure centres and sports halls
• Washdown systems
• Potable water distribution systems

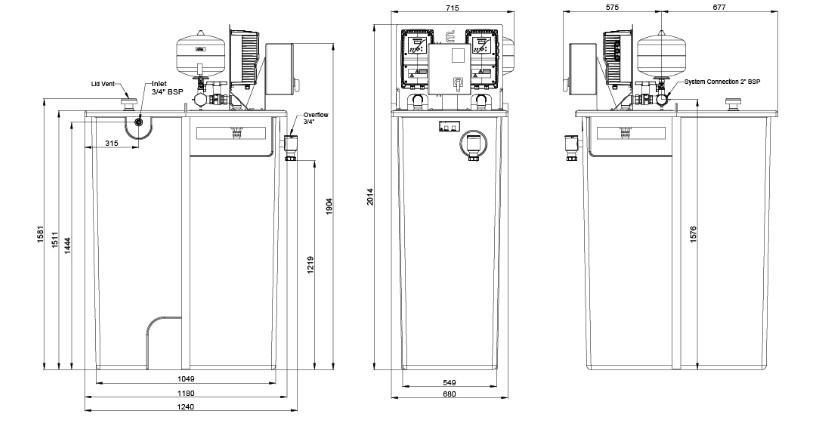

Technical Specifications

The Lowara Resvari Plus D 750 5-3 offers a dependable, energy-efficient solution for demanding water boosting applications, combining intelligent variable speed technology, twin-pump resilience, and full Category 5 compliance in a compact and easy-to-install package.
