Lowara Resvari Plus D 750 5-3 Variable Speed Booster Set 240V

Part Number: 135G01062

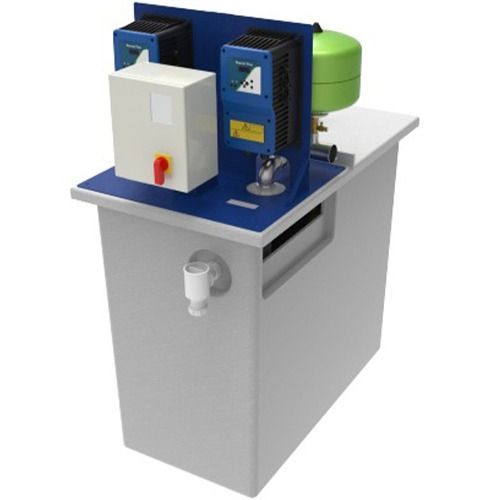

The Lowara Resvari Plus D 750 5-3 is a compact, dual-pump variable speed booster set engineered to provide reliable, energy-efficient water pressure boosting for domestic, light commercial, and washdown applications. Featuring a 750-litre Category 5 break tank, twin Lowara SCUBA submersible pumps, and integrated variable speed control, the system delivers consistent pressure while significantly reducing energy consumption.

Designed with installation flexibility in mind, the Resvari Plus D has a footprint comparable to a standard washing machine, allowing it to pass through conventional doorways and fit into restricted plant room spaces without disassembly. The dual-pump arrangement can operate in either Duty/Assist or Duty/Standby mode, providing greater performance during peak demand and built-in redundancy for enhanced system reliability.

Powered by the latest generation Lowara SCUBA multistage submersible pumps, the Resvari Plus D can achieve energy savings of up to 70% when compared to traditional fixed-speed booster systems.

Key Features

• 750 litre Category 5 break tank
• Twin-pump configuration for increased reliability and performance
• Integrated variable speed drive for optimum efficiency
• Energy savings of up to 70% compared to fixed-speed systems
• Compact footprint for easy installation in confined spaces
• Duty/Assist or Duty/Standby operational modes
• WRAS-approved components for potable water applications
• Category 5 compliant break tank with AB air gap for backflow protection
• Standard volt-free fault contact for connection to BMS systems
• Stainless steel and brass wetted components for durability and corrosion resistance

Suitable for Potable Water

The Resvari Plus D is specifically designed for potable water applications and incorporates:

• WRAS-approved break tank, pressure vessel and fittings
• Stainless steel manifold and pump components
• Brass isolation valves
• Category 5 break tank with AB air gap protection against mains water contamination

Pump Specification

• Quantity: 2 Pumps
• Pump Model: Lowara SCUBA 5SC4/07/5 C L05
• Pump Type: Stainless Steel Multistage Submersible Pump
• Approval: WRAS Approved

Performance Range

The Resvari Plus range includes multiple models offering:

• Flow rates up to 5 m³/h
• Pressure ranges from 2 to 5 bar at best efficiency point
• Model options covering both 3 m³/h and 5 m³/h duty requirements

Typical Applications

• Domestic water boosting
• Apartment blocks and residential developments
• Schools and educational facilities
• Sports halls and leisure centres
• Washdown systems
• Commercial buildings
• Potable water distribution systems

Technical Specifications

The Lowara Resvari Plus D 750 5-3 delivers a powerful combination of high performance, energy efficiency, and operational reliability, making it an ideal solution for demanding water boosting applications where consistent pressure, potable water compliance, and system resilience are essential.
