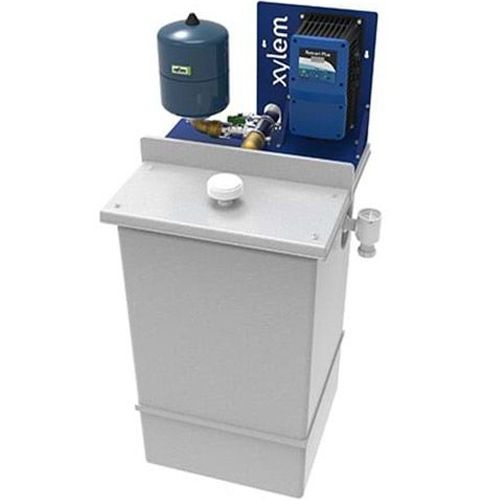

Lowara Resvari Plus S 250 3-3 Variable Speed Booster Set 240V
Part Number: 135G01001
Old Part Code: UKRESVARI250330
The Lowara Resvari Plus S 250 3-3 is a next-generation compact booster set designed for domestic and light commercial water boosting applications. Featuring a 250-litre Category 5 break tank, variable speed control, and a high-efficiency Lowara Scuba stainless steel submersible multistage pump, it delivers reliable water pressure while maintaining energy-efficient operation.
Its compact footprint makes it ideal for installation in basements, garages, plant rooms, and other space-restricted locations. The integrated variable speed drive automatically adjusts pump performance to match demand, ensuring consistent pressure and reduced energy consumption.
The Resvari Plus platform also offers the flexibility to pair two units together in either duty/assist or duty/standby configurations for enhanced system resilience and performance.
Key Features
- 250 litre Category 5 break tank
- Variable speed control via the integrated Resvari Drive

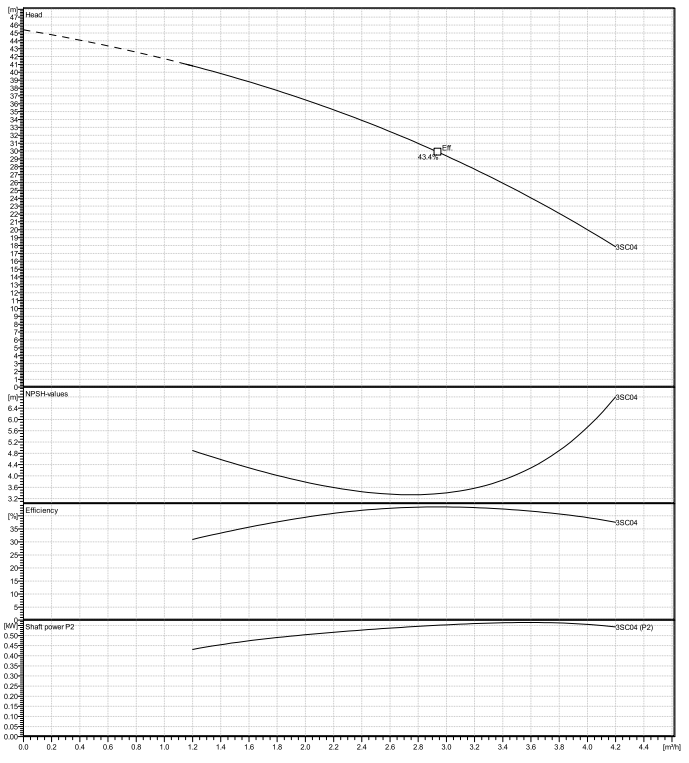

- Maximum flow rate up to 4 m³/h
- Maximum pressure up to 4.3 bar
- High-performance Lowara 3SC4/05/5 C L05 stainless steel submersible multistage pump
- WRAS-approved components suitable for potable water applications
- Detachable back plate with optional wall-mounting capability
- Supplied with:
- Non-return valve (NRV)
- 8-litre pressure vessel
- Pressure transducer

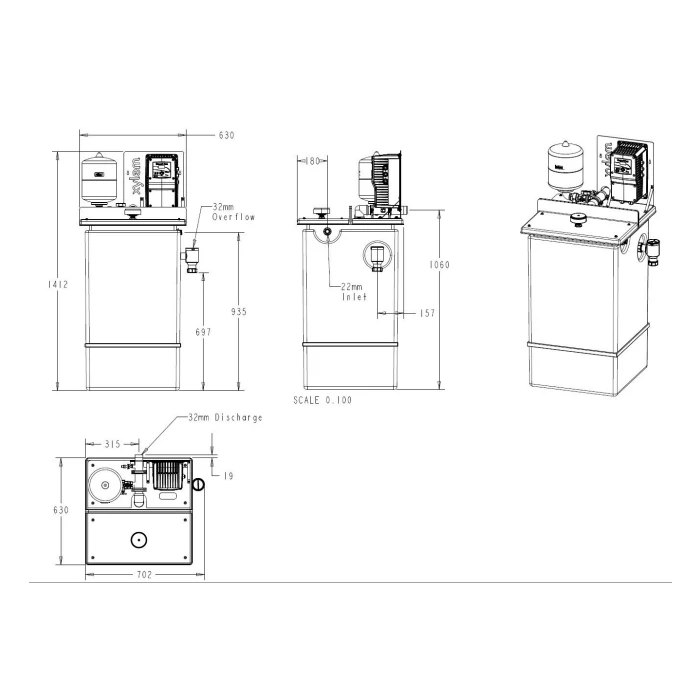

- Compact and flexible installation footprint
- Suitable for contaminated supply risk areas requiring Category 5 protection
Typical Applications
- Domestic cold water boosting
- Washdown systems
- Schools and educational facilities
- Sports halls and leisure centres
- Light commercial buildings
- General potable water boosting applications
Technical Specifications
| Specification |
Value |
| Part Number |
135G01001 |
| Tank Capacity |
250 Litres |
| Supply Voltage |
240V |
| Maximum Flow Rate |
4 m³/h |
| Maximum Pressure |
4.3 Bar |
| Pump Type |
Stainless Steel Submersible Multistage |
| Pump Model |
3SC4/05/5 C L05 |
| Control Type |
Variable Speed Drive |
| Approval |
WRAS Approved Components |
| Backflow Protection |
Category 5 Break Tank |
The Lowara Resvari Plus S 250 3-3 provides a compact, efficient, and reliable solution for maintaining consistent water pressure in demanding domestic and commercial application
